Currently the NavigationDrawer drawer expands to full screen as a user scrolls, this allows the client to set a maximum height that a navigation drawer can grow to. I tried doing multiple calculations to prevent the drawer from going passed a certain height but that made the component much more complex and still had some bugs. If a client chooses a `maximumDrawerHeight` that goes into the safe area the header will not grow, I am going to address that in a follow up.
PiperOrigin-RevId: 313214108
This allows our UI test runner to fetch the catalog by convention tree at runtime in order to generate dynamic test runners that walk the entire catalog by convention tree without requiring maintenance of an explicit list of breadcrumbs.
In this change I have replaced the explicit list of components with such a dynamic walker. In a follow-up change we will be able to dynamically walk through every node of the three and take screenshots. In a subsequent change from there we may allow certain nodes to implement "testActionStart" and "testActionStop" methods that allow the test runner to invoke certain canonical actions automatically (e.g. present a dialog).
A couple examples are flaky, so a new convention has been added to those examples of providing a "flaky" tag on the example's metadata. If this flag is YES, then the example will not be snapshotted.
PiperOrigin-RevId: 306214455
We recommend using `initWithDefaults` and we should follow the recommendation. This change removes all usage of `init` within MDC components in order to let us remove that initializer from the public surface.
PiperOrigin-RevId: 302958447
Prior to these changes, changing the maximumInitialDrawerHeight did not have any effect after initial presentation. This adds the ability to modify the value after presentation.
Also enables the ability to change the preferred content size with an animation. If the preferred content size is less than the maximum initial drawer height, the visible portion of the content will be adjusted. Previously, the visible portion would remain the same size, even if more could be shown on screen.
Closes#7369.
The `_contentHeaderTopInset > _contentHeightSurplus` check in `MDCBottomDrawerContainerViewController`'s `cacheLayoutCalculationsWithAddedContentHeight:` function was erroneously evaluating to `true` when presenting content:
- in full screen
- with no header
- with the content's height being equal to the available height
Because of how `_contentHeightSurplus` is calculated, it was almost (but not quite) equal to `_contentHeaderTopInset`, which was causing the function to infinitely recurse.
This PR also adds an example that demonstrates the issue. To reproduce:
1. Open MDCDragons
1. Navigate to the "Bottom Drawer No Header Less Content" example
1. Rotate the phone/simulator to landscape
1. Show the bottom navigation drawer by tapping on the menu icon
Expected:
The bottom drawer is displayed.
Actual:
The `cacheLayoutCalculationsWithAddedContentHeight:` infinitely recurses and the app crashes due to stack overflow.
Closes#7633
We need to add @objc annotations to colorScheme and typographyScheme instances in our Swift examples, because we moved to Swift 4.2, the respondsToSelector won't find `setColorScheme:` and `setTypographyScheme:` setters otherwise.
This is a follow up PR for #7166 adds @objc annotations to Swift catalogMetadata() methods, because the Swift 4 compiler no longer attempts to infer what methods should be visible to Objective-C. As a result of this change in the compiler, no Swift examples were showing up in Dragons after #7166. See this article: https://useyourloaf.com/blog/objc-warnings-upgrading-to-swift-4/ for additional context.
We are adding a new property for NavigationDrawer's API called `maximumInitialDrawerHeight` which allows clients to set the initial height of the drawer, rather than it always being 50% of the screen's height.
We also had to be mindful that in some cases allowing any percentage could have the offset of the scrollView be a fractional number that wasn't reasonable, and therefore UIKit would round the scrollView's contentOffset to a close (yet different) value. Therefore to not cause inconsistencies between what the scrollView content offset returns and the drawer's initial offset, we rounded the number after the initial percentage calculation.
Unit tests have been added and all examples have been tested with and without the variable.
Resolves#7080
## Related links
* Bug: #6305
* Component: [NavigationDrawer](https://github.com/material-components/material-components-ios/tree/develop/components/NavigationDrawer)
* Related PRs: #5928#5587#5520#5443
## Introduction
The navigation drawer should support resizable content. This content should be able to change and the drawer stay at the same height or not _jump_ to another height. There was a problem where the drawer would jump between heights for certain `preferredContentSize`'s of the `contentViewController`. This was thought to be addressed in #5928. Upon investigation the root cause was not that the drawer jumped when `preferredContentSize` changed but that some how the drawer was able to open passed it's `initialDrawerFactor`. Therefore when the `preferredContentSize` did change the drawer go to the correct `initialDrawerFactor` and when it changed back it would go to the incorrect value. Additionally, when the drawer got into this state it would be in an `.expanded` drawer state because the drawer thought it should open up passed the `initialDrawerFactor`.
## The problem
The drawer thought it had less content that it actually had and therefore would go into the incorrect state and override `initialDrawerFactor`.
## The fix
Upon investigation fixing the drawer's internal calculation as to how much _content_ it actually has vs how tall the `presentingViewBounds.height` multiplied by `initialDrawerFactor`.
## Tests
Tests were updated as well as comments around them to understand why they were updated.
## Code snippet
In order to test the before and after behavior edit `BottomDrawerInfiniteScrollingExample.swift` as outlined below.
```diff
let bottomDrawerViewController = MDCBottomDrawerViewController()
+ contentViewController.supportsScrollToTop = false
bottomDrawerViewController.contentViewController = contentViewController
```
Doing the above will showcase how the drawer got into it's broken state.
This PR closes#5600 .
The drawer now has added functionality allowing users to expand the drawer to full screen with duration and completion.
Clients have asked for this functionality, and it is also providing the expand to full screen functionality correctly even when the content is less than the full height of the screen.
### Context
Currently `MDCBottomDrawerViewController` _jumps_ if the preferredContentSize changes. A client is asking for this _jump_ to not happen but instead the drawer will look the same but have more content.
#### Conditional checks
1. The check to see if `_contentVCPreferredContentSizeHeightCached` is zero is because on initial layout this value is 0 until we call `cacheLayoutCalculations` which sets this value.
2. The check to see if `percentageFullScreen > 0.5` is there to make sure we never have an initial drawer factor more than design has specified.
### The problem
`MDCBottomDrawerViewController` _jumps_ if the preferredContentSize changes
### The fix
Set initialDrawerFactor to a custom value so that change doesn't cause a jump.

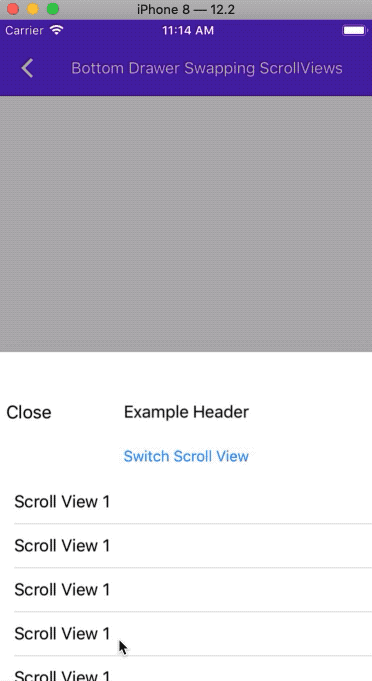

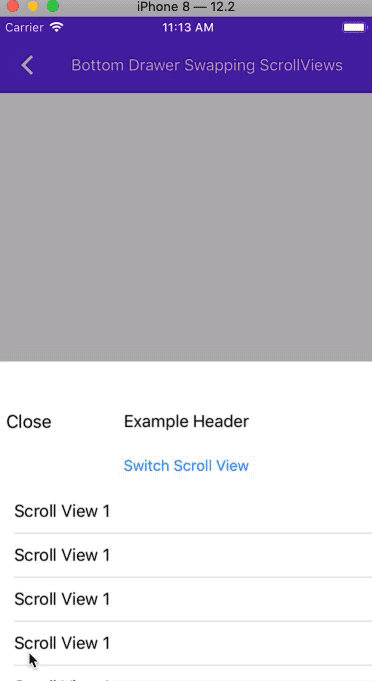

### Videos
| Before | After |
| - | - |
|||
**Context:**
Clients want the ability to scroll their content in the drawer to a specific content offset, most commonly to the top of the content.
**Problem:**
There is no current API that exposes a set content offset or moreover no API that exposes the internal scrollView to allow our clients to set its content offset as they will.
**Solution:**
Provide an API to set the content offset Y of the scrolled content of the drawer. Setting that offset Y to 0 essentially scrolls the user to the top. This API also allows the scrolling to be animated or not.
**Related Bugs:**
Closes#5713
**Context:**
Clients need a way to know the content inset of the drawer to be able to lay out their content appropriately.
**The Problem:**
Because things like the status bar, safe area, and the top handle take up more space at the top of the drawer, the content that is laid out initially will be clipped if not able to move the content appropriately as the drawer is dragged.
**The Fix:**
Add an MDCBottomDrawerViewControllerDelegate that listens to topInset changes as the drawer is dragged and provides the top inset in which the content should be laid out below.
**Testing:**
Unit Test + Tested on an iPhone X and iPhone 7 on all examples, portrait and landscape.
**Context:**
The navigation drawer's top handle should have an API to be able to customize its color.
**The Problem:**
Currently our top handle only has a default color set and can't have clients customize its color.
**The Fix:**
Provide an API to MDCBottomDrawerViewController to set the handle's background color.
**Testing:**
Unit Test + Tested on an iPhone X and iPhone 7 on all examples, portrait and landscape.

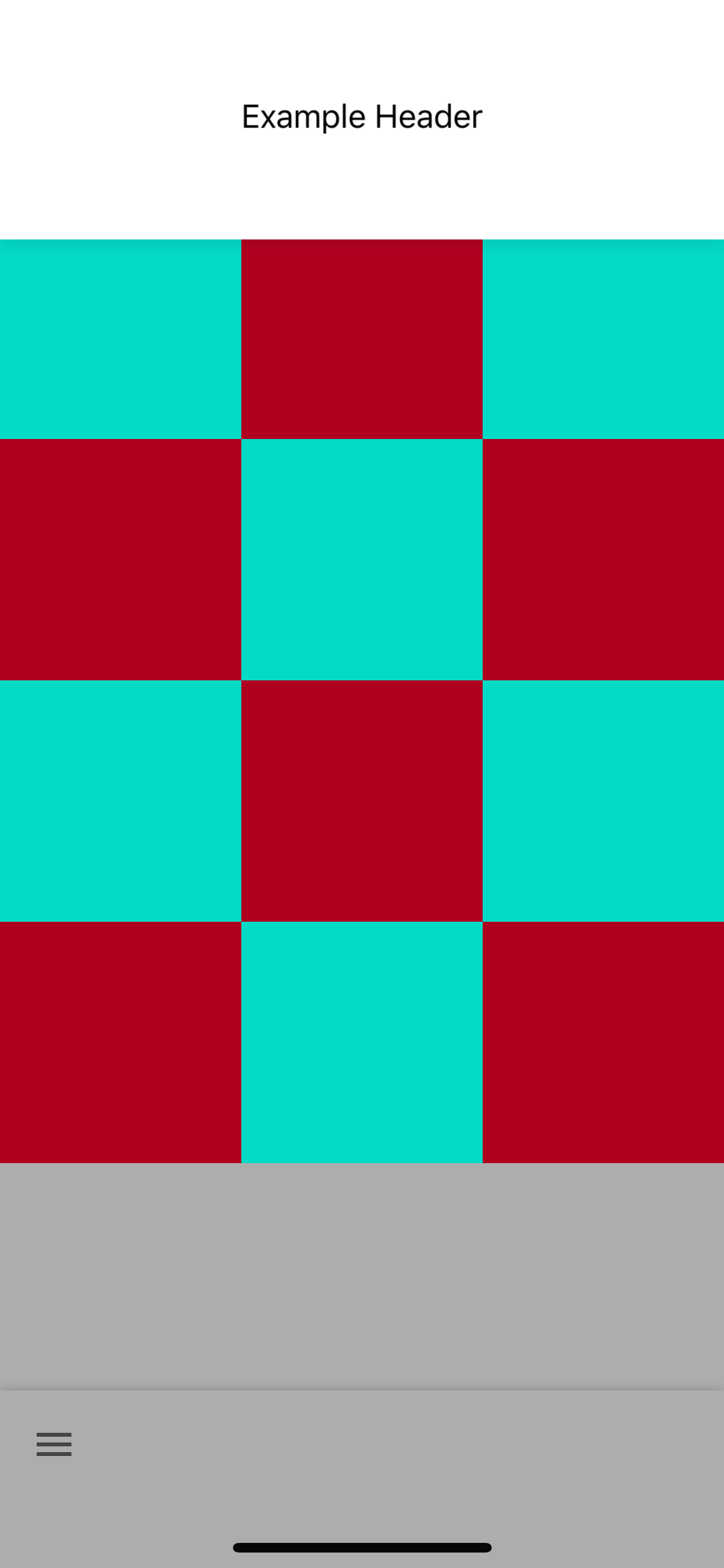

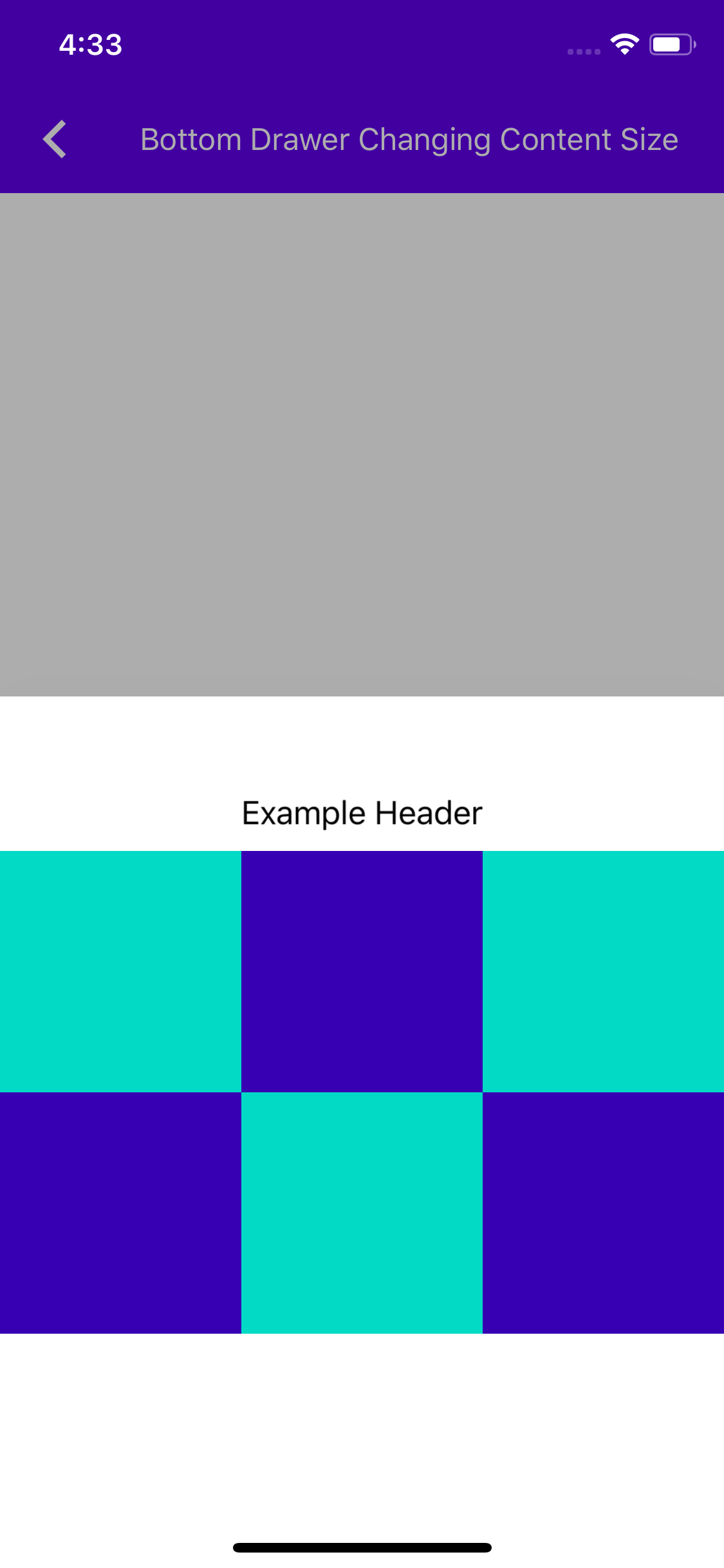

**Screenshot**
**Context:**
Clients need the ability to dynamically size their navigation drawer content and have the drawer work appropriately and correctly.
**The Problem:**
Currently we have no mechanism where we let the drawer know that the size of the content has changed and the internal calculations need to be re-calculated and re-applied.
Also, before we were partially listening to the `preferredContentSize` by asking if it has changed every so often using the conditional in the `contentHeightSurplus` getter. Some clients can have a very calculations heavy `preferredContentSize`, which will cause the whole drawer mechanism to lag.
**The Fix:**
Because the `contentViewController` and the `headerViewController` are child view controllers of `MDCBottomDrawerContainerViewController` , we can listen to `preferredContentSizeDidChangeForChildContentContainer` and reset the previously calculated variables and relayout the drawer.
**Testing:**
Unit Test + Tested on an iPhone X and iPhone 7 on all examples, portrait and landscape. A dragons example has been created exactly for the testing of the dynamically changing content size here: #5545
**Related Bugs:**
Closes#5514
**Context:**
The Navigation Drawer should have an affordance to show scrollability in a shape of a top handle.
**The Problem:**
Currently we have no top handle in our drawer to show scrollability.
**The Fix:**
In this PR we are adding a top handle to our drawer. the top handle is hidden by default. when the top handle isn't hidden, it is visible when there is more scrolling to perform for the drawer, and then it fades away as the drawer reaches its full height, or when it goes to full screen.
**Testing:**
Unit Tests + Tested on an iPhone X and iPhone 7 on all examples, portrait and landscape.
**Related Bugs:**
Closes#5515

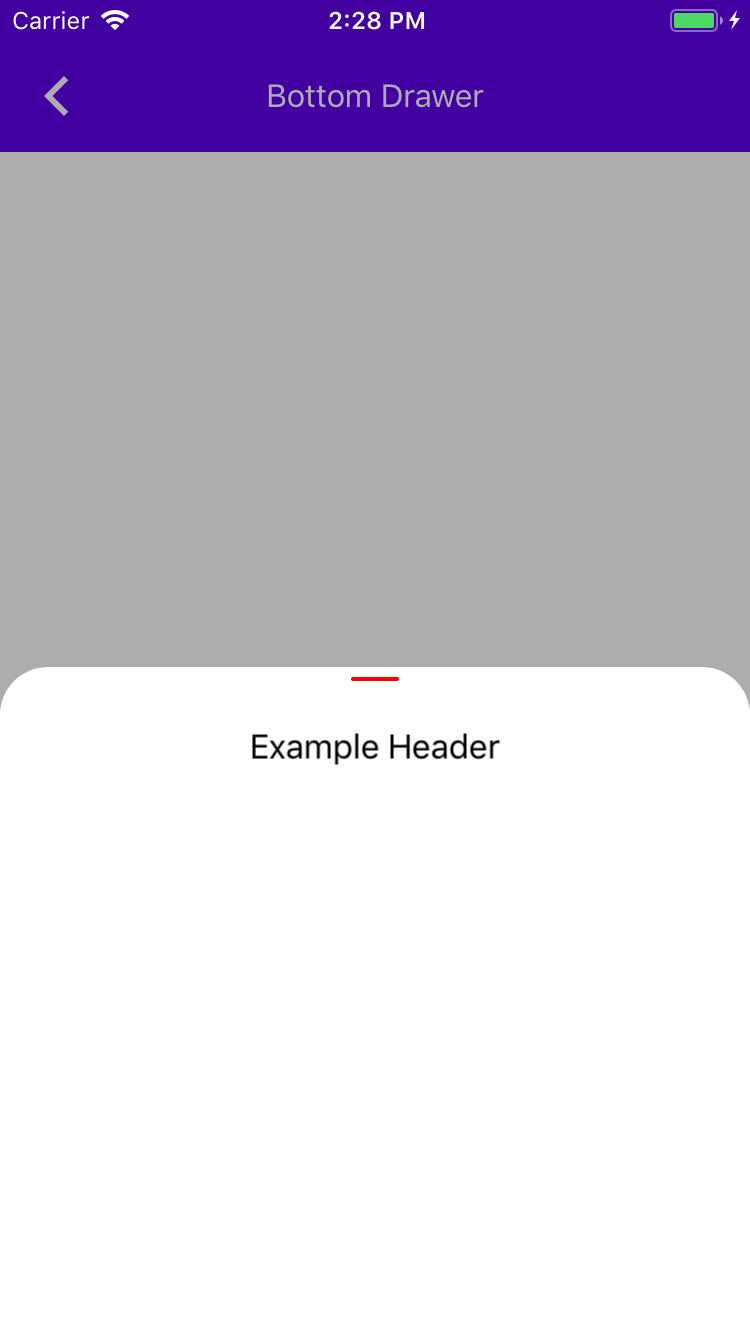

**Screenshot**
**Video of transition**
**Context:**
Some clients were not aware that their content's scroll view needs to be disabled so the content will not start scrolling while dragging the drawer.
**The Problem:**
Clients need to explicitly set their tracking scroll view scrolling to disabled manually.
**The Fix:**
If a tracking scroll view is provided, set the scrolling to disabled automatically and therefore cause less client confusion
**Testing:**
Unit Test + Tested on an iPhone X on all examples.
Context:
This change opens up an API to the nav drawer to allow clients to round the top corners using the state system. allowing them to define what corner radius will the top corners have based on the state the drawer is in.
The Problem:
There was no way for users to customize and set the top corners' radius of the drawer.
The Fix:
We now have an API open that allows users to set the corner radius using the drawer's state system. The corner radius logic was moved to the MDCBottomDrawerViewController because that logic isn't part of the drawer scrolling mechanism and shouldn't sit in MDCBottomDrawerContainerViewController if not necessary. To achieve the desired outcome we exposed internally the bottomDrawerTopTransitionRatio:transitionRatio API to the MDCBottomDrawerViewController so it can animate the transition between corner radius shapes smoothly.
Testing:
Unit Tests + Tested on an iPhone X and iPhone 7 with smaller and bigger preferredContentSize to imitate different states. Tested on Portrait and Landscape on all examples.
Related Bugs:
Closes#5516
This PR is the last step in graduating the Navigation Drawer component from Beta to Ready.
We have resolved all the outstanding issues in the Navigation Drawer Project here: https://github.com/material-components/material-components-ios/projects/85 and hotlist: 1230549 .
The only outstanding issue is the unit tests ( #5466 , #5465 ) which were approved and are pending due to GitHub issues causing CI not to run.
We are essentially migrating here the NavigationDrawer component from the MaterialComponentsAlpha podspec to the MaterialComponents podspec so it can be used publicly using the normal means of installing our Pod.
This PR is blocked and can land once #5466 and #5465 land.
Closes#5333
### The problem
BottomDrawer previously had no color themer support
### The fix
This change adds a color themer for BottomDrawer. Additionally this adds unit tests and updates the example to use the color themer. The guidelines indicate the content and header should utilize the semantic surface color, so that is what the themer applies to the BottomDrawer.
**Note:** The drawer should be configured with its header and content ViewControllers before applying the theme.
### Related issues
Closes#4910
### Code snippet
#### Swift
```
let bottomDrawerViewController = MDCBottomDrawerViewController()
bottomDrawerViewController.contentViewController = contentViewController
bottomDrawerViewController.headerViewController = headerViewController
MDCBottomDrawerColorThemer.applySemanticColorScheme(colorScheme,
toBottomDrawer: bottomDrawerViewController)
```
#### ObjC
```
MDCBottomDrawerViewController *bottomDrawer = [[MDCBottomDrawerViewController alloc] init];
bottomDrawer.contentViewController = contentViewController
bottomDrawer.headerViewController = headerViewController
[MDCBottomDrawerColorThemer applySemanticColorScheme:self.colorScheme
toBottomDrawer:bottomDrawer];
```
Added conformation to MDCBottomDrawerHeader for DrawerHeaderViewController.swift file in **NavigationDrawer** examples as it was not showing up if code was run.
### Context
In working on navigation drawer bugs the navigation drawer presents itself right when you open the example view controller.
### The problem
This makes it hard to do screenshot testing and harder to work on because you have to go back to the table view and then select the example again every time you want to present.
### The fix
Add a button to present the navigation drawer.
This code allows us to have the navigation drawer be presented at full screen when VoiceOver or SwitchControl is enabled. Even if the content doesn't take up the full screen, this still makes the content show at full screen.
This has been tested by imitating the VoiceOver by enabling the `isAccessibilityMode` method to always return true. Has been tested on all examples, by altering their preferred content size to be small, and also in their default state. Has been tested on iOS 8.1, and iOS 11. iPhone 6, iPhone SE, and iPhone X. Portrait and Landscape.
Removes the need to copy-paste stanzas from other files anymore as we'll rely on #4478 to generate the correct stanza for us instead.
This was an automated change generated by running a find-and-replace regular expression:
```
/\*
Copyright ([0-9]+)-present the Material Components for iOS authors\. All Rights Reserved\.
Licensed under the Apache License, Version 2\.0 \(the "License"\);
you may not use this file except in compliance with the License\.
You may obtain a copy of the License at
http://www\.apache\.org/licenses/LICENSE-2\.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied\.
See the License for the specific language governing permissions and
limitations under the License\.
\*/
```
```
/\*
Copyright ([0-9]+)-present the Material Components for iOS authors\. All Rights Reserved\.
Licensed under the Apache License, Version 2\.0 \(the "License"\);
you may not use this file except in compliance with the License\.
You may obtain a copy of the License at
http://www\.apache\.org/licenses/LICENSE-2\.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied\.
See the License for the specific language governing permissions and
limitations under the License\.
\*/
```
```
/\*
Copyright ([0-9]+)-present the Material Components for iOS authors\. All Rights Reserved\.
Licensed under the Apache License, Version 2\.0 \(the "License"\);
you may not use this file except in compliance with the License\.
You may obtain a copy of the License at
http://www\.apache\.org/licenses/LICENSE-2\.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied\.
See the License for the specific language governing permissions and
limitations under the License\.
\*/
```
```
// Copyright $1-present the Material Components for iOS authors. All Rights Reserved.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
```
Adding the navigation drawer component that adds a presentation controller for showing UIViewControllers as a bottom drawer.
History of the component (last CL submitted for it): cl/209765207
Design doc: go/mdc-ios-navigation-drawer
This component will be the first alpha component in this repo, this means that it can still change and will not be included as part of the podspec at first.
